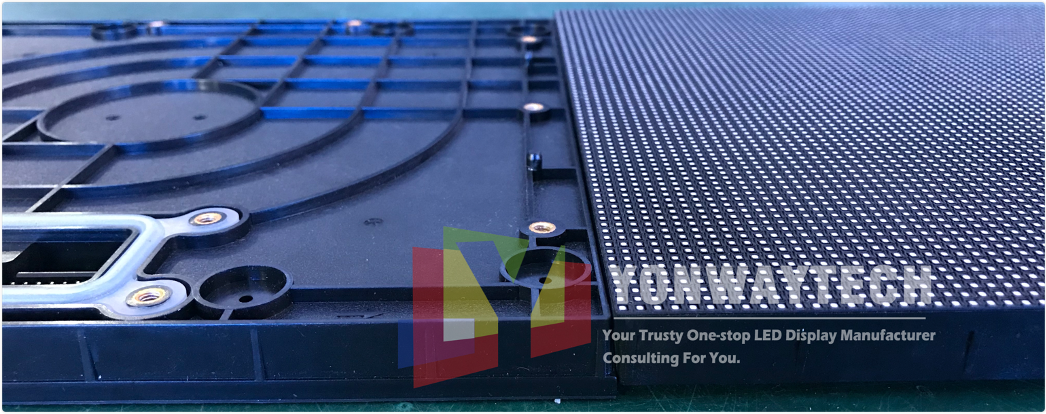

Outdoor IP65 250mmX250mm P2.976mm Standard Size LED Module panel With the high reliability and contrast,wide viewing angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
P2.976mm led module size 250mmx250mm configured with 1.6mm thickness PCB and 4 layers copper,ensure an excellent heat dissipation and best performance.
Outdoor P2.976mm IP65 LED screen Panel High Brightness and High Resolution 84dotsx84dots.
SMD Outdoor P2.976 LED Module Including real copper Data and Power Cables, Waterproof Rubber Ring.
Nationstar or kinglight led chips with 3840hz refresh rate.
Universal fixed holes for 500mmX1000mm or 500mmX500mm die-cast aluminum alloy cabinet.
IP65 front waterproof led cabinet easy operation and flexible in cabinet combination use.
Light weight cabinet and fast locks easy in creative shape installation and assembly
YONWAYTECH outdoor/indoor stage rental LED screen universal also can be combination installed for fixed led video wall billboard for indoor or outdoor.
Not only good for stage rental temporary use,but also available in digital led billboard fixed installation.
IP65 outdoor water proof makes more reliable.
Light weight and ultra slim cabinet for a high-end seamless video wall.

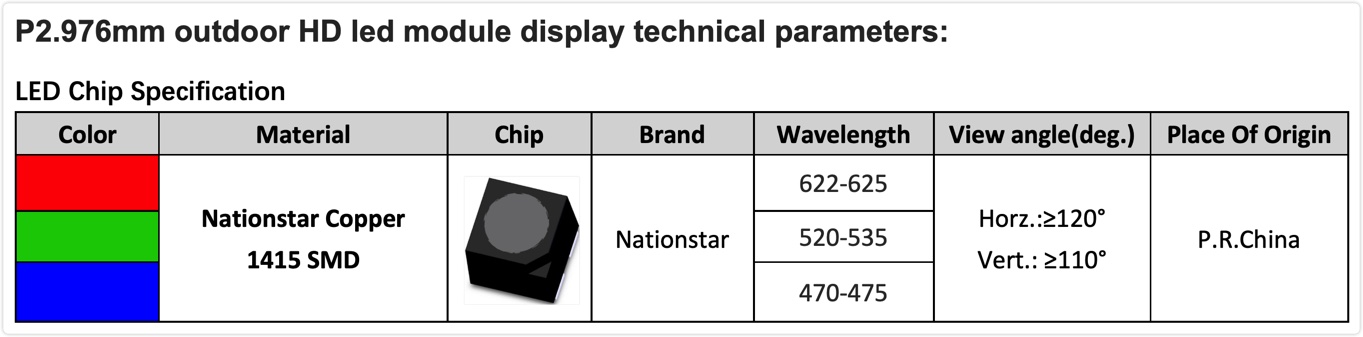

P2.976mm outdoor HD led module display technical parameters:
LED Display Specification
|LED Type||Nationstar SMD 1415 (Kinglight Optional)|
|Modular mask||Pure black UV-anti mask with a high contrast screen|
|Pixel Configuration||SMD 3 In 1, 1R1G1B|
|Module Size||Horz.: 250mm× Vert.: 250mm× Thk.:18mm|
|Module Resolution||Horz.: 84dots×Vert.: 84dots|
|Panel Size||Horz.: 500mm× Vert.: 1000mm× Thk.:150mm|
|Panel Resolution||Horz.: 168dots× Vert.: 336dots Customized Optional|
|Scan Solution||Constant 1/21|
|Drive IC||MBAI5124 / ICN2038S & 2160Hz PWM, 3840Hz Optional.|
|Power Consumption||≤690W/ m2 (MAX), ≤280W/ m2 (AVG)|
|Net Weight||650G/Module, 32KG/ m2 Cabinet.|
|Viewing Angle||Horz.: 140, Vert.:120|
|Control Mode||ASYNC Via WIFI/4G,SYNC VIA PC By USB/Net/HDMI Optional|
|Best View Distance||≥3m|
|Control Distance||CAT 5:≤120m;Multi Mode Fiber≤500m;Sigle Mode Fiber≤20km;|
|Working Temperature/Humidity (℃/RH)||-20～60 / 20%～85%RH (NO CONDENSATION OF MOISTURE)|
|Storage Temperature/Humidity (℃/RH)||-20～60 / 20%～85%RH (NO CONDENSATION OF MOISTURE)|
|Maintain Mode||Front & Rear dual service|
|Power Supply Requirement||AC90~264V,Frequency 47~63(Hz)|
|Applicable System||Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.|
1.High Quality LEDs
2: Best Quality Material, Modules and Chips
The material, modules and chips are selected with great care. We purchase the material from reputed vendors. we use the Best Driving IC,such as MBI5124,ICN2153,SUM16136 with high refresh rate,high grey level with latest technology.
LED Module Display Aging & Testing Before Assembly Or Delivery.
LED Display Module aging and testing is refers to imitate the long time operation without working problems,it is the most important to ensure the reliability of the LED display before delivery or assembly.
LED display can be more stable after aging, and it can help the use of the efficiency. led screen aging test is a very important link in quality control.
YONWAYTECH cherish each trusty work from our client,our led module or led display with strictly aging test and OQC to next step work like led module panel delivery or led display cabinet shipping.
The LED aging test is based on the product’s failure rate curve, which is the characteristics of the bathtub curve, and the countermeasures are adopted to improve the reliability of the product.
The indoor led module aging method includes constant current aging and constant pressure aging.
A constant current source is that the current is constant at any time,after using the frequency adjustable, current adjustable constant current source for such aging, in order to judging the quality of the outdoor led module in a short time and can pick out the dangerous LEDs make sure the led display module working well after installation.
The aging test of LED display is divided to white balance aging (2×24 hours) and video aging (24 hours).totally 72 hours before delivery.
Aging test process of led display screen,YONWAYTECH OQC need to confirm quality details as belows:
1; Check the led display module installed all correct.
2; Check whether there is a short circuit or not.
3; Check whether the module is flat and neat.
4; Check whether the appearance is intact or not.
5; Use the online led control system to light up.
We ensure our led display module product 100% as best as possible after aging before delivery.
