Omnipotent P1.56,P1.95,P2.6,P2.9,P3.9,P4.8 frontal rear dual service concert church event stage rental led display
Your Trustworthy One-stop Stage Event Rental LED Screen Factory,Consulting For you.
Omnipotent 500mmx500mmx80mm concert church stage rental led display available in P1.953,P2.604,P2.976,P3.91,P4.81 for fixed or temporary use.
Ultra light weight,more easier in operation.
Omnipotent series 500mmx500mm standard cube led rental screen in pixel p1.953,p2.5,p2.604,p2.976,p3.91, p4.81,p5.95,p6.25 for indoor or outdoor use.
Ultra-Light die-casting aluminum portable cabinet,ultra-thin thickness within 80mm.
A strong and reliable cabinet structure not only important during event show safe, but also good for your business ROI.
Light weight led panels make the LED display is good for transport and installation, saving time and a good amount of money on your labor cost.
Humanization design led cabinet handle,quick assembly.
YONWAYTECH omnipotent series stage rental LED screen for indoor and outdoor use with dual frontal and rear maintenance available for LED Panels and Power Box,easier in installation of led panels.
Hidden test button, stack installation joggle,magnet adsorption module, module installation knob,power connector,signal connector, all led rental display details just to make it more easier and faster in assembly within 20 seconds.
Omnipotent series rental led screen perfect design with new technology and elegant appearance.
Corner protector for LED configured in panel.
Yonwaytech omnipotent series stage rental LED screen front service LED sign has four corner protectors in each corner of panel to prevent LED to be damaged,
especially more security for transport, installation, operation, assembly and disassembly.
Magnetic elegant led module with high waterproof
Yonwaytech omnipotent series stage rental LED screen adopts magnetic adsorption LED panel with ultra thin design, broadside waterproof interface and installation knob.
Humanization design led panels configured security handle and wires make sure front and rear service in safe and efficient.
Fast replacement woithin 10 seconds,assembly,disassemble with safety protection.

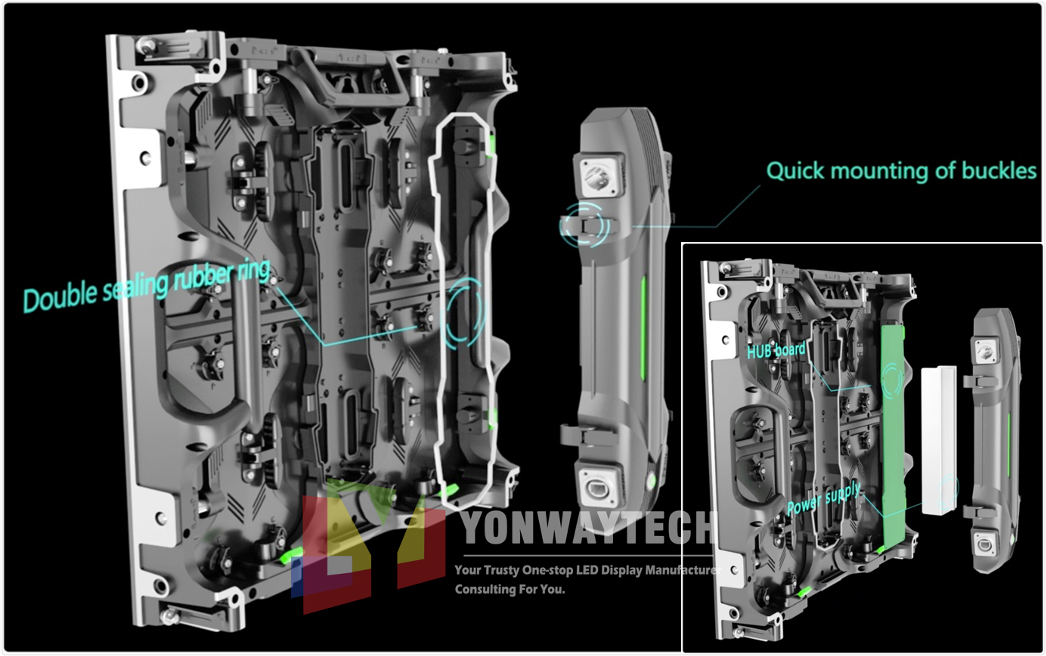

Highly integrated detachable versatile back control box with high IP65 waterproof
Detachable back cover integrated with all componemts like power supply/receiving card/hub board/all kinds of cables,board to board connection but also ip65 waterproof more reliable.
Fits for both indoor and outdoor use.
Fits all pixel pitches of yonwaytech omnipotent series stage rental LED screen.
No tool needed, rapid replacement.
Yonwaytech always take care of each details of our product to ensure a reliable performance.
High precision and humanization design curve rotating Lock
YONWAYTECH omnipotent series stage rental LED screen configured with high precision curve Lock design (-10°to +10°) is adopted to solve the problem that the elder generation curved lock is difficult to use before.
Rotational control,more accurate,more easier to use and quickly adjust the curved degree you want.
High Refresh Rate, High Contrast, High Grey Scale, Bright Color.
Refresh rate of YONWAYTECH omnipotent series stage rental LED screen can be achieved in 3,840hz fully matching the demand of live feed switching, even under 1/2000 shutter professional camera shooting.
YONWAYTECH omnipotent series stage rental LED screen universal also can be combination installed for fixed led video wall billboard.
Not only good for stage rental temporary use,but also available in digital led billboard fixed installation.
IP65 outdoor water proof makes more reliable.
Ultra-wide viewing angle give you the largest screen viewing area.
Viewing angle up to 140° in vertical and horizontal.
Audiences seeing from any angles, the stage rental led display would still being a natural and vivid image.
Technical Parameter:
Y-Omnipotent-Stage Event-V01
|
Model |
P1.95 |
P2.604 |
P2.976 |
P3.91 |
P2.976 |
P3.91 |
P4.81 |
|
Pixel pitch（mm） |
1.95mm indoor |
2.6mm indoor |
2.9mm indoor |
3.9mm indoor |
2.9mm outdoor |
3.9mm Outdoor |
4.8mm Outdoor |
|
Pixel Matrix Per SQM |
262144 |
147456 |
112896 |
65536 |
112896 |
65536 |
43264 |
|
Pixel Configuration |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD1415(outdoor) |
SMD1921 |
SMD1921 |
|
Brightness(nits) |
≥800 nits |
≥900 nits |
≥1000 nits |
≥1100 nits |
≥4500 nits |
≥4500 nits |
≥4500 nits |
|
Scan |
1/32 |
1/32 |
1/28 |
1/16 |
1/21 |
1/16 |
1/13 |
|
Power Con.(Max/Avg) |
200W/sqm(Avg) |
200W/sqm(Avg) |
200W/sqm(Avg) |
220W/sqm(Avg) |
200W/sqm(Avg) |
220W/sqm(Avg) |
200W/sqm(Avg) |
|
640W/sqm(Max) |
640W/sqm(Max) |
600W/sqm(Max) |
680W/sqm(Max) |
640W/sqm(Max |
640W/sqm(Max) |
640W/sqm(Max) |
|
|
Modules Dimension |
9.84" x 9.84"x 0.67" (W x H x D) |
||||||
|
Modules Solution |
128 x 128 |
96 x 96 |
84 x 84 |
64 x 64 |
84 x 84 |
64 x 64 |
52 x 52 |
|
Cabinets Dimension |
19.69" x 19.69"x 3.15" (W x H x D) |
||||||
|
Cabinets Solution |
256 x 256 |
192 x 192 |
168 x 168 |
128 x 128 |
168 x 168 |
128 x 128 |
104 x 104 |
|
Cabinets Weight |
7.5kg / 16.53 lbs |
8kg / 17.64lbs |
|||||
|
Cabinets Material |
Magnesium aluminum alloy |
||||||
|
Serivice Access |
Front / Rear |
||||||
|
Refresh Rate(HZ) |
≥3840 |
||||||
|
Grey Scale(bit) |
16 |
||||||
|
Color Temperature |
4,500k--8,500k adjustable |
||||||
|
Viewing Angle(H/V) |
Horz.:≥160° / Vert.:≥140° |
||||||
|
IP Rate |
IP31 / IP 31 |
IP65 / IP54 |
|||||
|
Input Voltage(AC) |
110V / 240V, 50/60 HZ |
||||||
|
Operating Temperature |
-10°C to +40°C / 14°F to 104°F |
||||||
|
Lifespan(hrs) |
>100,000(hrs) |
||||||
|
Transmission Distance |
CAT-5E≦120m,Multi-mode Optical Fiber≦500m,Single Mode Optical Fiber≦12km |
||||||
|
Cabinet installation type |
Fixed digital signage/ Rental stage backdrop |
||||||
|
Warranty |
2-5 years standard product warranty |
||||||
Standard #Frame #Structure For Stage Rental #LED #Display As LED Video Wall Backdrop.
Yonwaytech LED display stage background frame support structure for rental LED screen.
All standard parts are connected with fast locks, not need screws.
Really fast assembly for all events.
Cabinet 4 corners fixed by plates or middle fixed slot fast locks optional,creative applied in all LED display units.
With our fame structure, you can get your #stage background LED display ready quickly.
-
