Outdoor P2.5 Exterior 2.5mm 320×160 LED Module HD 4k 8K LED Display

Short Description:

HIGH BRIGHTNESS Over 6000nits/sqm.

2.5mm the smallest pixel pitch outdoor led display a HD VIVID RESOLUTION IMAGE AND VIDEO

Achieving a good resolution in the limited space.

Yonwaytech HD narrow pixel pitch 2.5mm led screen can do a great favor to your DOOH business.

Best resolution in real outdoor HD led display 4K / 8K DOOH video wall.

Modular mask configured brings better proof and vivd video contrast.

960mmx960mm , 640mmx960mm , 1280mmx960mm , Die-casting aluminum magnesium alloy led cabinet can be in combined installation to the customized led display screen size you need.






  • Trade Terms: EXW,FOBShenzhen,CIF,DDU,DDP
  • Packaging: Plywood case / Flight case
  • Payment Terms: T/T, Western Union
  • Delivery Time: 10-20 working days
  • Transportation: Sea shipping,Air freight or Express (DHL/FEDEX/EMS)
  • Place of Origin: Shenzhen,Guangdong,P R China
  • MOQ: 1 Square meter
  • Product Detail



    HIGH BRIGHTNESS Over 6000nits/sqm.

    2.5mm the smallest pixel pitch outdoor led display a HD VIVID RESOLUTION IMAGE AND VIDEO

    Achieving a good resolution in the limited space.

    320mmx160mm , 160mmx160mm , 200mmx200mm, creative led module optional.



    Outdoor p2.5 320x160 led module display HD 4k 8k



    Yonwaytech Exterior HD P2.5 LED Display With Modular Anti UV Mask Configured With Better Contrast In Outdoor LED Screen.

    Real outdoor water proof and high brightness HD P2.5 the smallest pitch led module display with good materials and worriless production quality control.

    Selected top level led chips configured in 4 layers 2.0mm PCB brings more reliable video in outdoor 4k or 8k HD led screen.

    320mmx160mm modular with well front IP65 water proof gluing and rear PCB three-proofing lacquer maximum extend life span  and more vivid video performance.



    SMD415 Outdoor p2.5 320x160 led module display HD 4k 8k



    Yonwaytech HD narrow pixel pitch 2.5mm led screen can do a great favor to your HD , 4K , 8K high resolution DOOH business.

    Best resolution in real outdoor HD led display 4K / 8K outdoor led video wall.

    Modular mask configured brings better proof and vivd video contrast.

    High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady a long life span led video wall.



    Of10-3216 960x960 Alloy Cabinet



    960mmx960mmx100mm ,

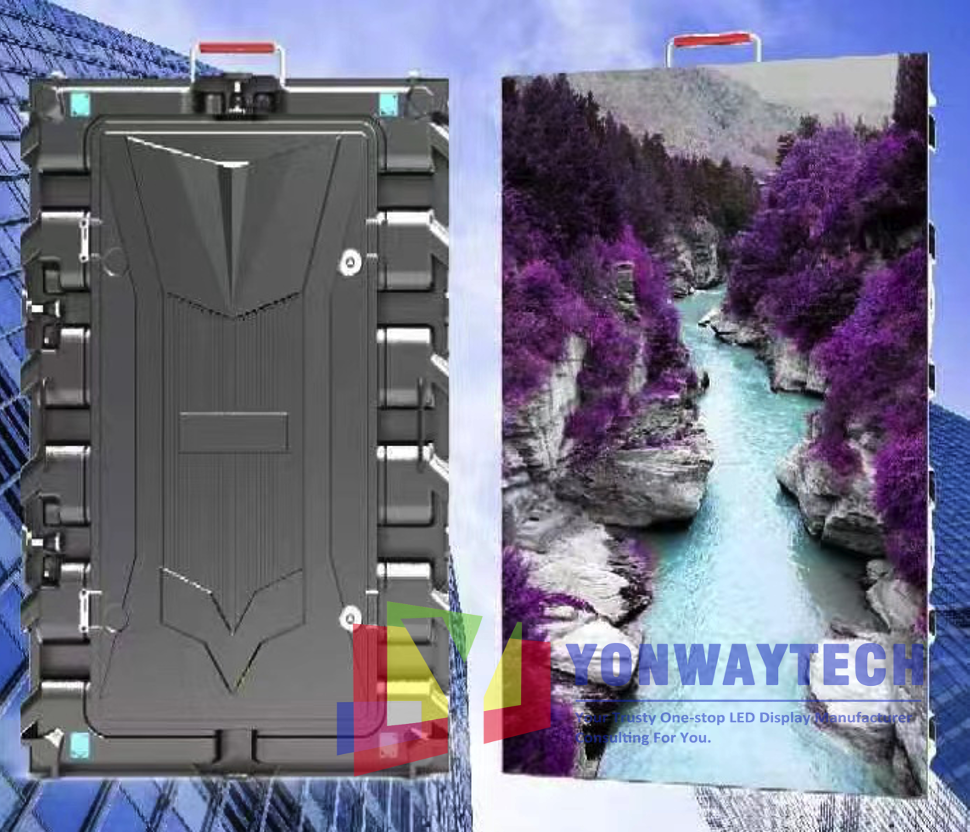

    640x960 outdoor led display p2.5 exterior pantalla led





    640mmx960mmx100mm ,



    1280x960 outdoor led display p2.5 exterior pantalla led



    1280mmx960mmx100mm ,





    The 3 Different Sizes Of Die-casting aluminum magnesium alloy led cabinet can be in combined installation to the customized led display screen size you need.



    Fine standard cabinet with no obvious gaps between the led screen.

    Non-deformability function keeps the screen in a good shape and smoothly.

    Aerofoil fan cooling immediately,4 fans configured in each 2.5mm cabinet, ventilation volume is 5.6 cubic meter per minute, air circulation 20 times very minute inside the led cabinet.

    High efficiency cooling ensure stable led display.

    Metal components of the led screen, the shell of power supply and the cabinet with well grounded, and the grounding resistance should be less than 10Ω.

    Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human being.





    Die Casting Aluminum Magnesium Alloy light Weight Cabinet Good For Both Fixed LED Billboard Or Stage Rental Backdrop Led Screen Video Wall.

    Also available in stadium perimeter led display used as sport led screen with Yonwaytech customized service.

    Ultral light weight and slim cabinet,960mm×960mm×100mm with only 26kg /cabinet.

    Sides fast locks and locating pin more easier in operation.



    High standard 320mm×160mm LED module configured in 960mm×960mm×100mm , 640mm×960mm×100mm , 1280mm×960mm×100mm die casting aluminum magnesium alloy cabinet also available pixel pitch

    in p2.5, p3, p3.3, p4, p5, p6, p6.67, p8, p10…… for indoor or outdoor use.

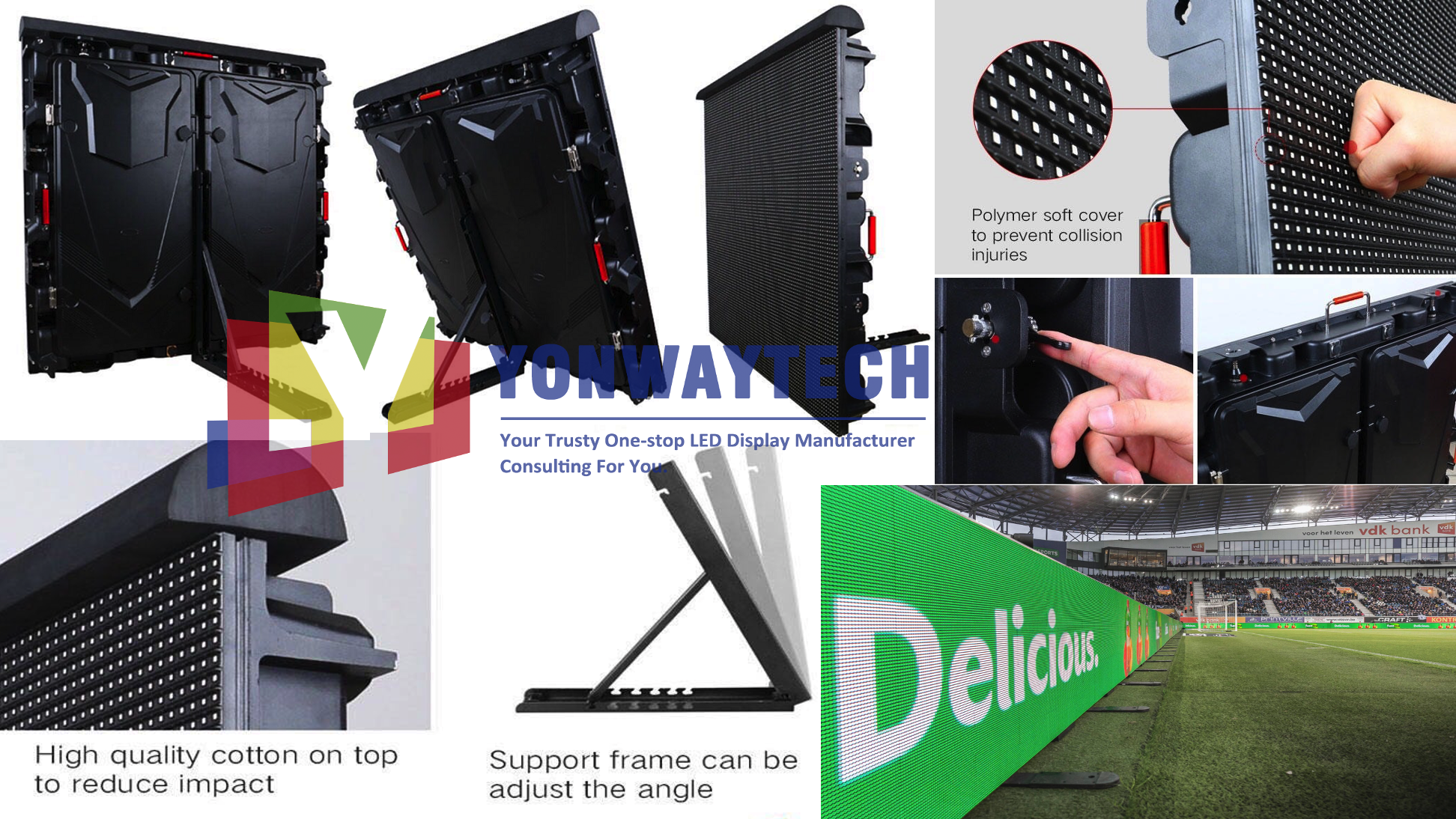

    stadium sport led screen



    Excellent independent waterproof module and the waterproof enclosure with excellent sealing performance to protect cabinet, which is a perfect dust proof, waterproof and corrosion resistant, and the protection grade is up to IP65.

    All-weather for outdoor environment, can work smoothly in any weather condition.

    Viewing angle is up to 160°vertical and 140°horizontal, providing a wide viewing angle.

    Ultra-wide viewing angle give you the largest screen viewing area, more eye balls catching.







    Technical Parameter:

    Y-Of2.5-320×160-1/16-V01

    LED Chip Specification

    Outdoor p2.5 320x160 exterior HD led module display



    LED Display Specification:

    Item Technical Parameter
    Panel No. Y-Of2.5-320×160-1/16-V01
    LED Type Nationstar SMD 1415
    Pixel Pitch 2.5mm
    Pixel Configuration SMD 3 In 1, 1R1G1B
    Module Size Horz.: 320mm× Vert.: 160mm× Thk.:16.5mm Modular Mask
    Module Resolution Horz.: 128dots×Vert.: 64dots
    Density 160000dots/m2
    Brightness ≥6000nits/m2
    Scan Solution Constant 1/16
    Drive IC ICN2038S & 2160Hz PWM, 3840Hz Optional.
    Contrast Ratio 3000:1
    Power Consumption ≤1000W/ m2 (MAX), ≤380W/ m2 (AVG)
    Net Weight 540G/Module, 27KG/ m2 Cabinet.
    Gray Scale 16Bit
    Color 281 Trillion
    Refresh Rate(Hz) 1920Hz—3840Hz
    Viewing Angle Horz.: 140, Vert.:120
    Color Temperature 6500K
    Frame Frequency ≥60Hz
    Failure Rate ≤1/1,000,000
    MTBF ≥10,000 Hours
    Control Mode ASYNC Via WIFI/4G,SYNC VIA PC By USB/Net/HDMI Optional
    Best View Distance ≥3m
    Control Distance CAT 5:≤120m;Multi Mode Fiber≤500m;Sigle Mode Fiber≤20km;
    Working Temperature/Humidity (/RH) -20~60  / 20%~85%RH (NO CONDENSATION OF MOISTURE)
    Storage Temperature/Humidity (/RH) -20~60  / 20%~85%RH (NO CONDENSATION OF MOISTURE)
    Display Mode 1024*768,2K,HD,4K,8K
    Maintain Mode Rear
    Power Supply Requirement AC90~264V,Frequency 47~63(Hz)



    Yonwaytech Outdoor LED Display Production Process:
