P3.91 Event Stage LED Display For Indoor Outdoor 500mmx500mm 500mmx1000mm
Stage event being more and more popular for celebration, elements of stage contains lighting / audio / video…
LED display playing an important role in video, used for Live interaction, Video broadcast etc.
P3.91 as the appropriate pixel pitch made itself as the best sale in event stage backdrop or outdoor fixed video wall.

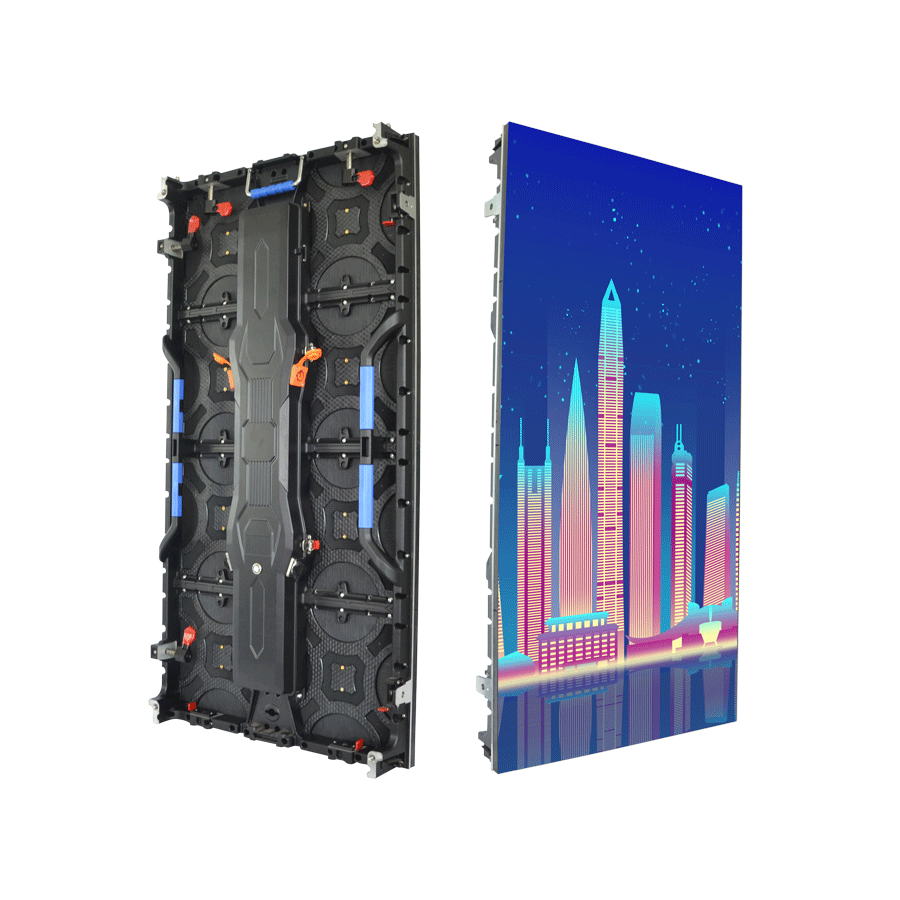

Ultra light weight led display cabinet more easier in daily operation.
Ultra-Light die-casting aluminum portable cabinet, ultra-thin thickness within 80mm.
500mmx500mmx80mm and 500mmx1000mmx80mm die-casting aluminum cabinet can be option for a creative assembly led display.
A strong and reliable cabinet structure not only important during event show safe, but also good for your business ROI.
Light weight led panels make the LED display is good for transport and installation, saving time and a good amount of money on your labor cost.
Yonwaytech led display provide various of designs cabinet for your option.
Yonwaytech outdoor P3.91 250mmx250mm led module display with selected materials real NATIONSTAR LED chips and
worriless production quality control.
All detected well 1.6mm thick 4 layers of copper PCB before SMT with excellent heat dissipation and reliable performance.
The module back three-proofing lacquer is produced automatically,reduce artificial electrostatic damage and maximum extend the life span when the LED display in outdoor used.
Fully automatically screwed the PCB which have configured with all components to the module shell,R,G,B and full white balance testing on the production line ensure zero failed dot in led module to modular front water proof gluing.
Fully automated production line finished the module front IP65 water proof gluing,rear PCB three-proofing lacquer and modular mask screwed with more reliable and efficient production.
Anti UV mask brings better uniformity and contrast to a vivid LED screen video performance.
High precision and humanization design curve rotating Lock
YONWAYTECH omnipotent series stage rental LED screen configured with high precision curve Lock design (-15°to +15°) is adopted to solve the problem that the elder generation curved lock is difficult to use before.
Graded control more accurate and more easier to use and quickly adjust the curved degree you want.
High Refresh Rate, High Contrast, High Grey Scale, Bright Color.
Refresh rate of YONWAYTECH omnipotent series stage rental LED screen can be achieved in 3840hz fully matching the demand of live feed switching, even under 1/2000 shutter professional camera shooting.
In order to reduce the incidence of failure.
Yonwaytech led display do a series of vibration tests before leaving the factory to ensure that the goods can be as best as possible
perfectly delivered to out client.
Normally there are 2 ways of vabration test, one is to use our vibration testing machine,t he other is that we use softer foam cotton
to beat the screen overall.
YONWAYTECH stage temporary rental LED screen universal also can be combination installed for
permanent fixed led video wall billboard.
Not only good for stage rental temporary use,but also available in digital led billboard fixed installation.
IP65 outdoor water proof makes more reliable.
Ultra-wide viewing angle give you the largest screen viewing area.
Viewing angle up to 140° in vertical and horizontal.
Audiences seeing from any angles, the stage rental led display would still being a natural and vivid image.
Technical Parameter:
|
Model |
P1.95 |
P2.604 |
P2.976 |
P3.91 |
P2.976 |
P3.91 |
P4.81 |
|
Pixel pitch（mm） |
1.95mm indoor |
2.6mm indoor |
2.9mm indoor |
3.9mm indoor |
2.9mm outdoor |
3.9mm Outdoor |
4.8mm Outdoor |
|
Pixel Matrix Per SQM |
262144 |
147456 |
112896 |
65536 |
112896 |
65536 |
43264 |
|
Pixel Configuration |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD1415(outdoor) |
SMD1921 |
SMD1921 |
|
Brightness(nits) |
≥800 nits |
≥900 nits |
≥1000 nits |
≥1100 nits |
≥4500 nits |
≥4500 nits |
≥4500 nits |
|
Scan |
1/32 |
1/32 |
1/28 |
1/16 |
1/21 |
1/16 |
1/13 |
|
Power Con.(Max/Avg) |
200W/sqm(Avg) |
200W/sqm(Avg) |
200W/sqm(Avg) |
220W/sqm(Avg) |
200W/sqm(Avg) |
220W/sqm(Avg) |
200W/sqm(Avg) |
|
640W/sqm(Max) |
640W/sqm(Max) |
600W/sqm(Max) |
680W/sqm(Max) |
640W/sqm(Max |
640W/sqm(Max) |
640W/sqm(Max) |
|
|
Modules Dimension |
9.84″ x 9.84″x 0.67″ (W x H x D) |
||||||
|
Modules Solution |
128 x 128 |
96 x 96 |
84 x 84 |
64 x 64 |
84 x 84 |
64 x 64 |
52 x 52 |
|
Cabinets Dimension |
19.69″ x 19.69″x 3.15″ (W x H x D) |
||||||
|
Cabinets Solution |
256 x 256 |
192 x 192 |
168 x 168 |
128 x 128 |
168 x 168 |
128 x 128 |
104 x 104 |
|
Cabinets Weight |
7.5kg / 16.53 lbs |
8kg / 17.64lbs |
|||||
|
Cabinets Material |
Magnesium aluminum alloy |
||||||
|
Serivice Access |
Front / Rear |
||||||
|
Refresh Rate(HZ) |
≥3840 |
||||||
|
Grey Scale(bit) |
16 |
||||||
|
Color Temperature |
4,500k–8,500k adjustable |
||||||
|
Viewing Angle(H/V) |
Horz.:≥160° / Vert.:≥140° |
||||||
|
IP Rate |
IP31 / IP 31 |
IP65 / IP54 |
|||||
|
Input Voltage(AC) |
110V / 240V, 50/60 HZ |
||||||
|
Operating Temperature |
-10°C to +40°C / 14°F to 104°F |
||||||
|
Lifespan(hrs) |
>100,000(hrs) |
||||||
|
Transmission Distance |
CAT-5E≦120m,Multi-mode Optical Fiber≦500m,Single Mode Optical Fiber≦12km |
||||||
|
Cabinet installation type |
Fixed digital signage/ Rental stage backdrop |
||||||
|
Warranty |
2-5 years standard product warranty |
||||||
Standard #Frame #Structure For Stage Rental #LED #Display As LED Video Wall Backdrop.
Yonwaytech LED display stage background frame support structure for rental LED screen.
All standard parts are connected with fast locks, not need screws.
Really fast assembly for all events.
Cabinet 4 corners fixed by plates or middle fixed slot fast locks optional,creative applied in all LED display units.
With our fame structure, you can get your #stage background LED display ready quickly.
-
